SCPV Series Stepper-Controlled Needle Valves

Features:
• 2% hysteresis
• Excellent linearity—2.5 of full-scale
• 2 ms reaction time
• Millions of cycles
• Holds position for power savings or at a loss of power
• In-line, manifold and cartridge styles available

Compare
Add to wishlist
Category: Proportional Valves
Share
Facebook Twitter Pinterest linkedin Telegram
close
Product categories
  • Uncategorized 3
  • Schrader Duncan 28
    • Pneumatic Direction Control Valves 8
    • Pneumatic Cylinder 6
    • Customized Solutions 5
    • FRLs 3
    • Rotary Actuators 5
    • Pneumatic Accessories 3
  • Rotary Unions 12
    • Coolant Rotary Unions 1
    • Custom Rotary Unions 1
    • Hot Oil and Steam Rotary Union (Above 160 degree C) 3
    • Hydraulic Rotary Unions 2
    • Multi Passage Rotary Union 1
    • Water and Steam Rotary Unions 2
  • Legris 18
    • Tubing and Fittings (Max 8-12 Bar) 2
    • Industrial Ball Valves 3
    • Push-In Fittings (Max 20 Bar) 6
    • Technical Tubing and Hose 7
  • LEGRIS Transair 3
  • Clippard 48
    • Electronic Pressure Control 1
    • Valves 39
      • Electronic Valves 13
      • Air Pilot Valves 5
      • Control Valves 7
      • Isolation Valves 4
      • Manually-Operated Directional Control Valves 5
      • Proportional Valves 5
    • Cylinders 6
    • Specials 2
  • Destaco 11
    • Clamping 7
      • Heavy Duty Pneumatic Clamps 0
      • Light Duty Pneumatic Clamps 2
      • Manual Clamping 5
    • Gripping 4
      • Angular Grippers 0
  • Instrument Solenoid Valve 4
  • Zubair Auto Drain Valve 4
    • Non Pilot Operated Auto Drain Valve 2
    • Pilot Operated Auto Drain Valves 2
  • Description
Description

Utilizing the industry’s most robust and powerful linear actuator, the high-flow stepper-controlled proportional valves outperform the competition in performance and durability. This valve is ideal in critical applications such as gas delivery, medical, analytical, and industrial automation requiring high resolution, high flow, and low hysteresis. In addition, the unique design allows for custom flow profiles when required.

Medium: Air and compatible gases
Typical Cycle Time for Full Travel:
0.95 seconds at 100% duty cycle
0.55 seconds at 25% duty cycle
    (full open to full close or full close to full open)
Wetted Materials: Stainless steel, aluminum, brass, Acetal and FKM*
Pressure Range: Vac to 100 psig*
Flow Range: 0 to 280 slpm
Special configurations over 500 slpm available, consult factory
Flow Resolution: 0.7 slpm per step
Position Resolution: 0.001″ per step
Temperature Range: 32 to 184˚F
Driver: Bipolar chopper drive required
Needle: 3.5˚
Supply Voltage to Motor: 5 VDC
Response Time: 0.95 sec. fully-open to fully-closed
Mounting: In-line, manifold or cartridge
Power Consumption:
3.85 watts nominal only during adjustment
0 power consumption to maintain position
Seals: FKM standard, others available
Option: Rubber seat (add “-R” suffix)

See some videos on YouTube:

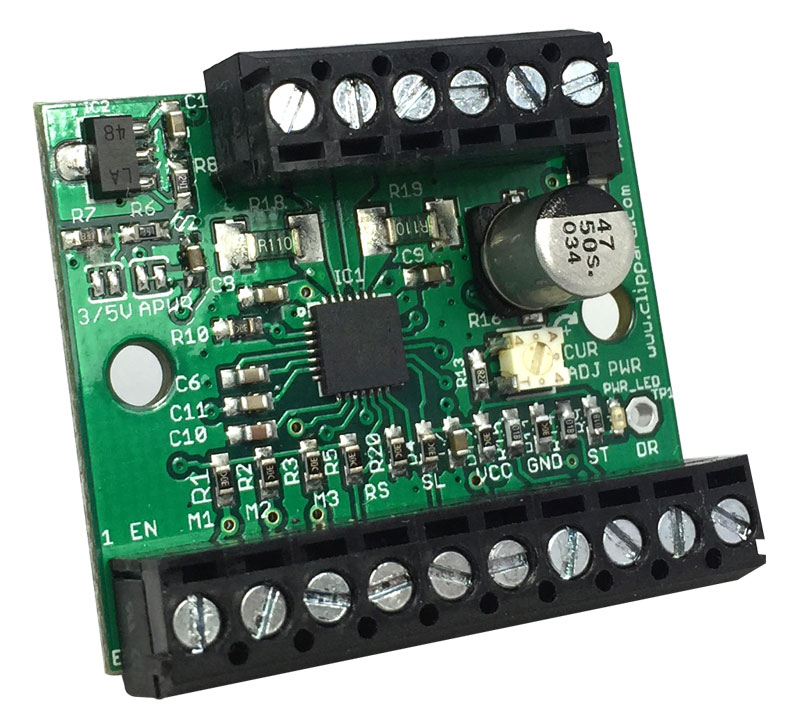

SCPVD-1 Stepper-Controlled Proportional Valve Driver

Stepper Motor Driver for Stepper-Controlled Proportional Valves

The SCPVD-1 Valve Driver is a stepper motor driver designed to operate Clippard SCPV Series Stepper-Controlled Proportional Valves in 1/16, 1/8, 1/4, 1/2, and full step modes.

• +7 to +35 VDC supply voltage
• Maximum 2A/phase
• 1/16, 1/8, 1/4, 1/2, and full step modes
• 5V or 3.3V logic inputs (jumper selectable)
• LED power supply indicator light
• Crossover current protection
• Thermal shutdown circuitry

Download Installation & Ops. Manual (PDF)

 Go to Clippard EVP Proportional Valves

 Go to Clippard DVP Proportional Valves
